Description
Advantages:
The cooler has the characteristics of beautiful appearance, simple operation, low energy consumption, long life, uniform cooling, and easy maintenance.
Small power, no three wastes, stable operation, easy maintenance, reasonable process layout, technology, and low production cost;
The distribution and angle design of the lifting plate are beautiful, and the performance is reliable, so the wind energy utilization rate is high, the cooling is uniform, and the number of material cleaning times is small.
Usage and purpose:

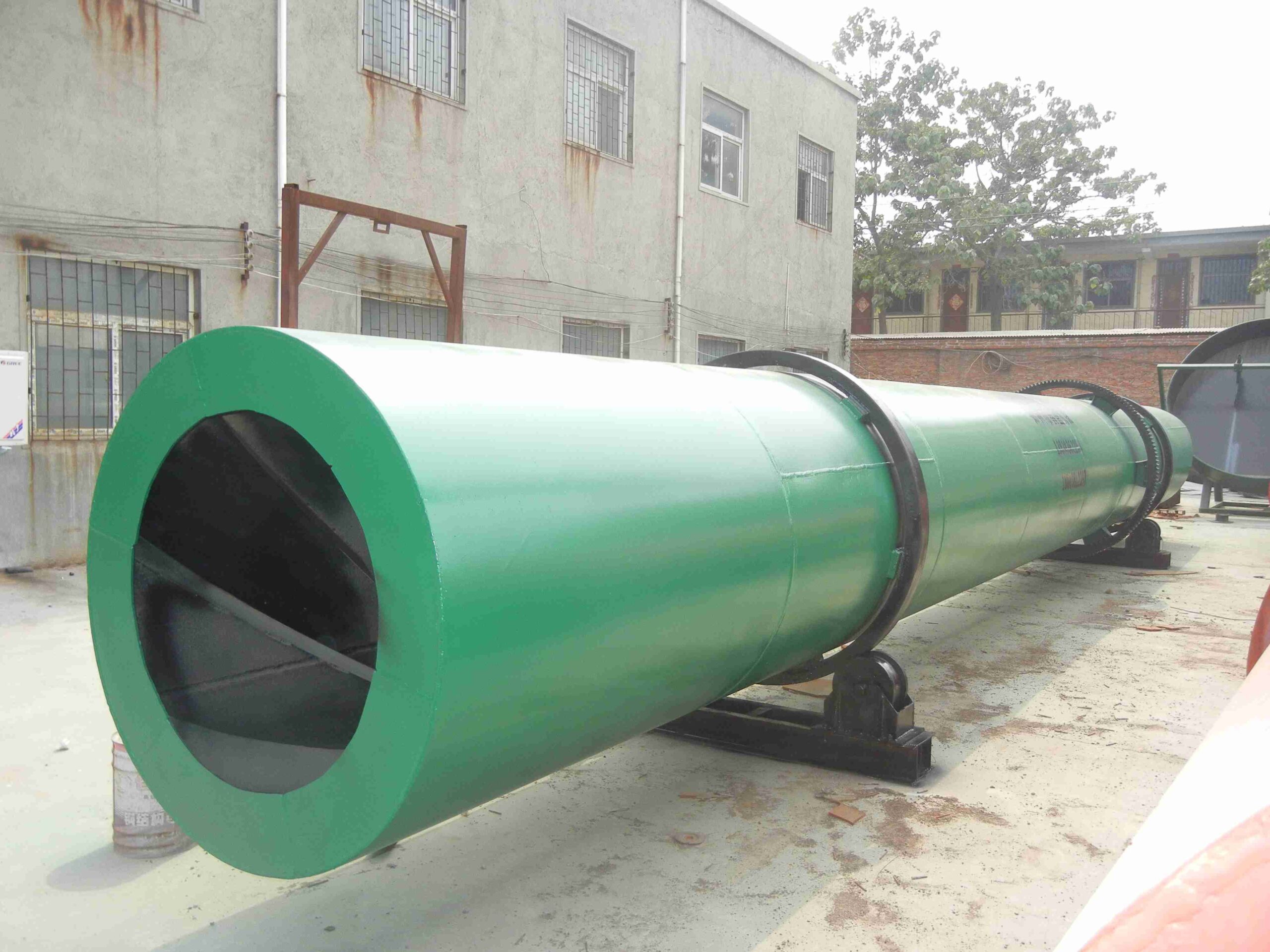

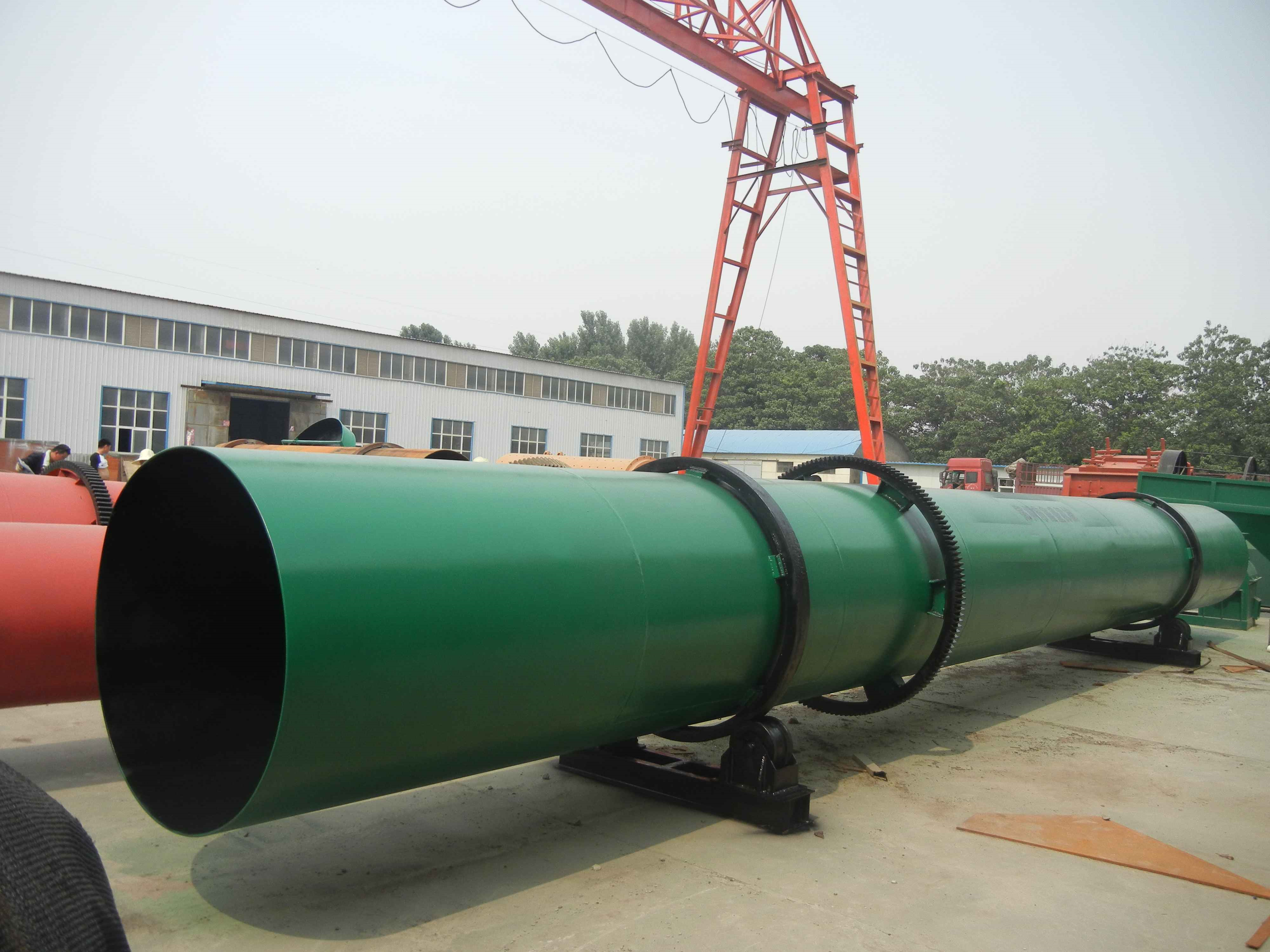

Remove moisture and reduce the temperature of materials, cool the temperature of granular fertilizers. The cooler is equipped with a lifting plate, and the cylinder is supported on the retaining wheel device with the help of a support ring. The lower end of the support ring and the retaining wheel are in rolling contact to prevent the axial sliding of the cylinder. The rotation of the cylinder is driven by a set of transmission devices with the help of a large gear ring fixed on the support ring cylinder at a high altitude. Depending on the material, the aspect ratio, power and weight of the equipment will vary. The manufacturer can design and manufacture according to the material properties and user requirements.
Suitable for people:
livestock manure: pig manure, chicken manure, cattle and sheep manure, horse manure, pigeon manure and other livestock manure
Industrial waste: straw, soybean meal, cotton meal, mushroom residue, biogas residue, fungus residue, wine lees, vinegar lees, cassava residue, sugar residue, furfural residue; Domestic waste: kitchen waste, etc.
product properties:
model | diameter (mm) | length (mm) | bevel | Revolutions | Production Capacity t/h | Inlet hot air temperature ℃ | Outlet air temperature ℃ | model | power | Revolutions | Reducer model |
LQ8800 | 800 | 8000 | 2.5 | 4.5 | 1-1.5 | 60-80 | <40 | Y132M-4 | 7.5 | 1440 | ZQ350 |
LQ10100 | 1000 | 10000 | 4.5 | 1-2 | 60-80 | <40 | Y132M-4 | 7.5 | 1440 | ZQ350 | |
LQ12120 | 1200 | 12000 | 4.7 | 2-2.5 | 60-80 | <40 | Y160M-4 | 11 | 1460 | ZQ350 | |
LQ15120 | 1500 | 15000 | 5 | 4-6 | 60-80 | <40 | Y180L-6 | 15 | 970 | ZQ400 | |
LQ15150 | 1600 | 16000 | 5 | 5-7 | 60-80 | <40 | Y180L-6 | 15 | 970 | ZQ400 | |
LQ18180 | 1800 | 18000 | 3.9 | 7-10 | 60-80 | <40 | Y200L1-6 | 18.5 | 970 | ZQ500 | |
LQ20200 | 2000 | 20000 | 3.9 | 8-14 | 60-80 | <40 | Y200L2-6 | 22 | 970 | ZQ650 | |
LQ22220 | 2200 | 22000 | 3.2 | 12-16 | 60-80 | <40 | Y250M-6 | 37 | 980 | ZQ750 |
